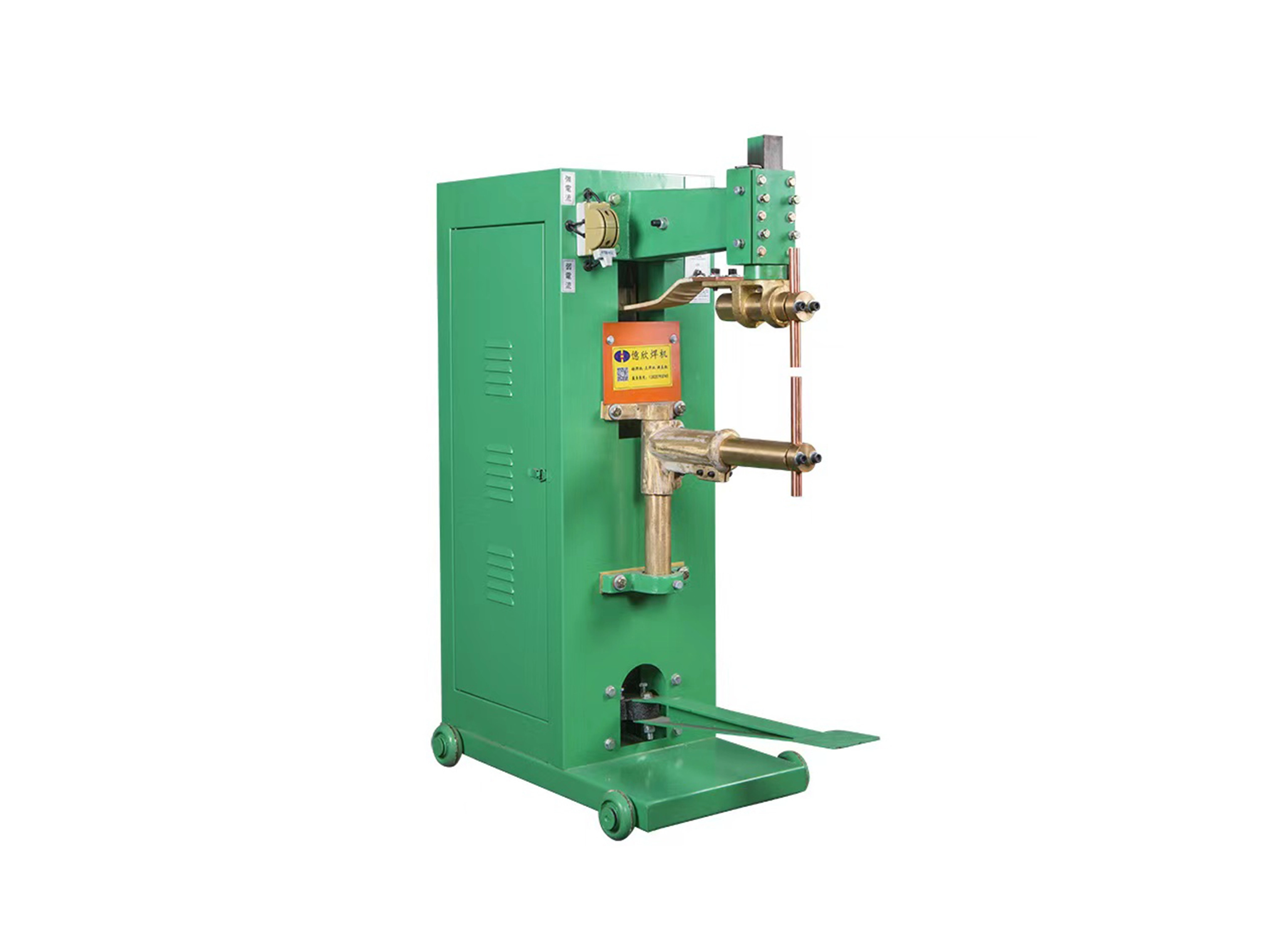

YXA-25 YXB-50 YXC-35(YXA-35) Foot Butting Spot Welder
Characteristics
Using high-power contactless thyristor and advanced SCRIC numerical control technology, it has simple and fast operation, stable current and low energy consumption, solid welding and good welding surface.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic parameters
| Model number | YXA-25 | YXB-50 | YXC-35(YXA-35) |
| Current range | 20A-150A | 20A-200A | 20A-200A |
| Tunable series | 2 gear (weak gear, strong gear) | Second gear (weak, strong) or seventh gear | 2 gear (weak gear, strong gear) |
| Rated power | 25KVA | 50KVA | 35KVA |
| Volume(mm) | 1200X400X380 | 1200X400X380 | 1200X400X390 |
| Weight | 150Kg | 250Kg | 150Kg |
| Input Power (AC) | 2PH code 380V50HZ | 2PH code 380V50HZ | 2PH code 380V50HZ |
|
Scope of use |
Weld iron wire below 5mm+5mm The plates can be welded below 1.5mm+1.5mm |
Weld iron wire below 10mm+10mm The plates can be welded below 3.0mm+3.0mm |
Weld iron wire below 8mm+8mm The plates can be welded to plates below 2.0mm+2.0mm |
Field of application
Suitable for all kinds of hardware products welding, such as "wire crafts, metal plates, Christmas crafts, lighting products, auto parts, handbags, footwear accessories, etc.
