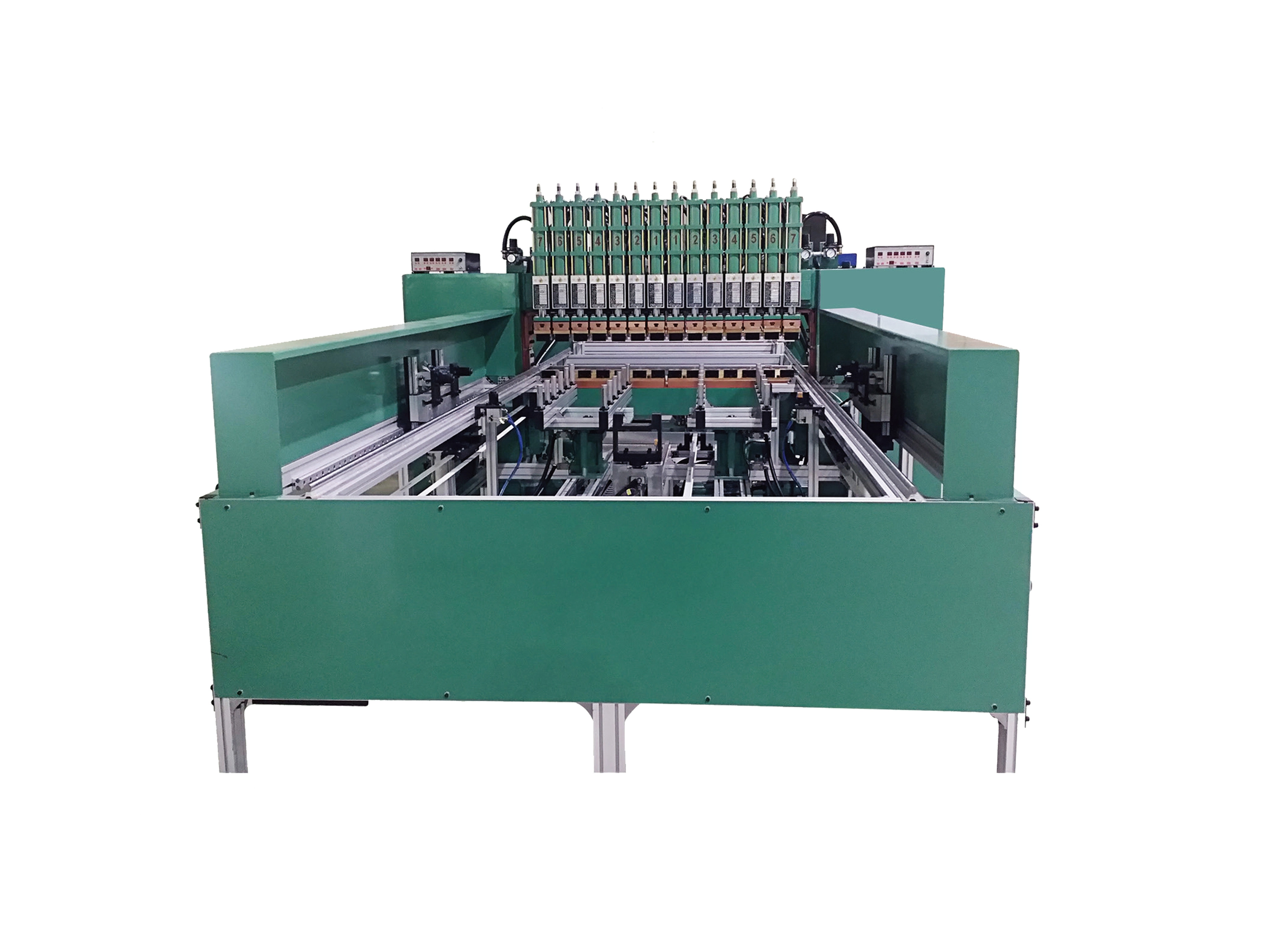

YX-LM-2000 Gantry automatic welding machine
Characteristics
PLC control technology, motion feeding device, all servo system, efficient, fast, accurate. The number of removable cylinders is generally 10-20 heads, and two 150KVA water transformers are generally used. The production efficiency is 2-5 times higher than the traditional welding method.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic parameters
| Model number | YX-LM-2000 |
| Rated power | 150KVA+150KVA |
| Rated frequency | 50HZ |
| Volume(mm) | 2200x8600x1850mm |
| Weight | 1150Kg |
| Rated voltage | 380V(two-phase) |
| Maximum welding (mm) | 10.0+10.0 |
| Secondary short-circuit current | 31000A+31000A |
| Secondary short-circuit voltage | 15.6V+15.6V |
Application field
Suitable for all kinds of wire mesh, mesh, stainless steel mesh, mesh, storage rack production.
